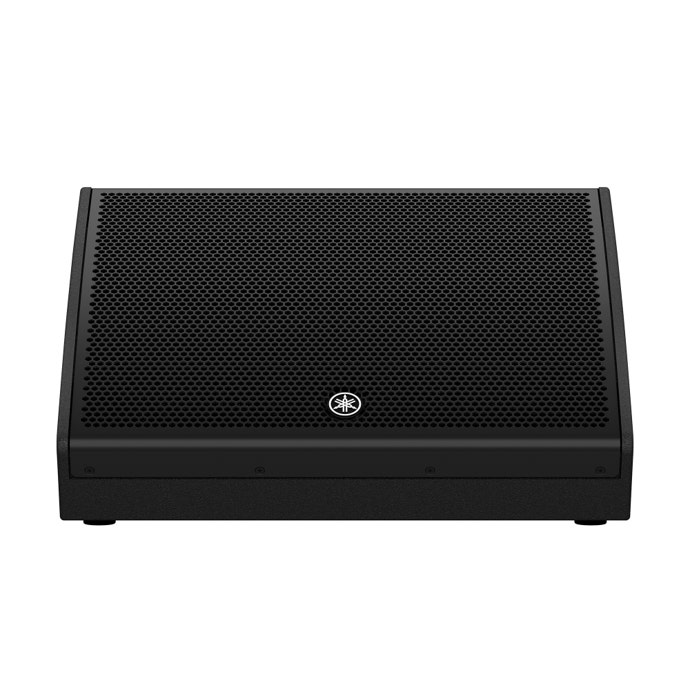

The CHR15M 2-way loudspeaker features a custom 15" Coaxial Driver and a 1.75-inch HF driver design that provides near perfect phase response, making it one of the most accurate floor monitors in its class. A strong steel grille and rugged plywood cabinet finished with a tough polyurea coating, will stand up to well to the rigors of onstage use. A pole socket to allows stand mounting completes this versatile loudspeaker. Combining carefully selected and customized transducers with the same plywood construction found on our high-end CZR Series, the CHR15M offers best-in-class sound quality and durability.
Yamaha CHR15M 15-Inch Passive Speaker Features:
- 15" LF driver with a 3" voice coil
- The CHR15M delivers extremely high SPL from its compact, low profile enclosure
- Equipped with a 1.75" HF compression driver coaxially mounted in the LF unit
- A heavy steel grille protects the drivers and looks great onstage
- Triple Speakon connections wired in parallel for easy stage cabling
- 35mm socket to allow placement on a stand or pole
- The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications
- A clear sound with minimal vibration
- Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface
- A pole socket for use on a stand
- Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance
About the Manufacturer Phone: 714-522-9000
Warranty: 7 Years on DSR, DXR & DXS Speakers; 3 Years on Power Amps, Speakers, YDP, CP, N100, PF & P Series Digital Pianos; 1 Year: on Digital Mixers, Studio Monitors, Analog Consoles, Powered Mixers, Multi-Track Recorders, Digital Effect Processors, Signal Processors, Synthesizers, Drum Machines, Sequencers, Tone Modules, Portable Keyboards, Guitars, Drum Shells & Hardware, Drum Shell Finish; 1 Year on Parts & 90 Days on Labor on Drum Pedals, Cymbal Stands, Rack Systems
Yamaha CHR15M 15-Inch Passive Speaker Specifications
Yamaha CHR15M 15-Inch Passive Speaker Specifications Product Specifications | Yamaha CHR15M 15-Inch Passive Speaker Specifications:
- System Type: 2-way Speaker, Bass-reflex
- Frequency Range (-10dB): 58Hz - 20kHz
- Coverage Angle: H65° x V75°
- Crossover Frequency: 2.0 kHz
- Nominal Impedance: 8 Ω
- Sensitivity (1W, 1m): 95dB SPL (*2)
- Maximum SPL: 125dB SPL (*2)
- LF Diameter: 15" Cone
- LF Voice Coil: 3"
- LF Magnet: Ferrite
- HF Diaphragm: 1.75" PET
- HF Type: 1" Throat Compression Driver, Coaxial
- HF Magnet: Ferrite
- I/O Connectors: SpeakON NL4MP x 3 (Parallel)
- Cabinet Material: Plywood
- Finish: Durable Polyurea Painting, Black
- Dimensions (W × H × D, with rubber feet): 642 x 369 x 505 mm (25.3" x 14.5" x 18.9")
- Net Weight: 21.3 kg (47.0 lbs)
|
